Removing and Replacing a PSU

Cautions:

  1. Use ESD precautions when performing these procedures.

  2. Read Replacing System Components before you remove any system components.

Précautions:

  1. Utilisez les précautions ESD lors de l'exécution de ces procédures.

  2. Lisez Replacing System Components avant de retirer des composants du système.

To remove a PSU

  1. Unwrap the power-cord retention strap, and then disconnect the power cord. See Figure 46.

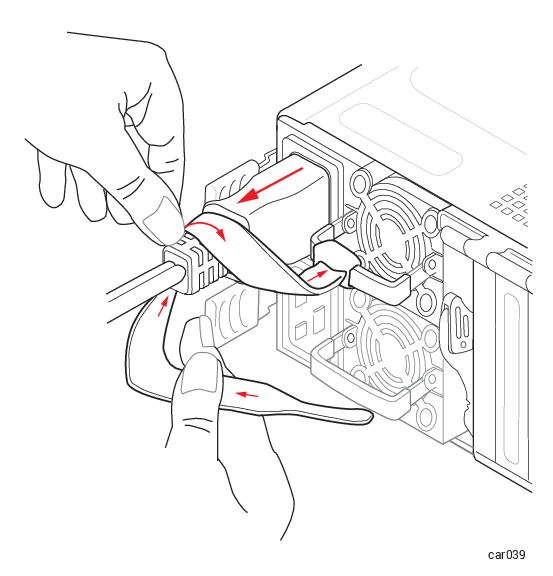

    Figure 46: Disconnecting Power Cord and Retention Strap

  2. Push the release lever to the right while pulling the handle until the PSU releases. See Figure 47.

    Figure 47: Pushing PSU Release Lever

  3. Release the release lever and pull the PSU out of the system chassis.

To replace a PSU

Caution: When you insert a PSU into the system chassis, make sure that the plug is on the left and the fan is on the right, as shown in Figure 46. Otherwise, damage may result.
Précaution: Lorsque vous insérez un bloc d'alimentation dans le châssis du système, assurez-vous que la fiche est à gauche et que le ventilateur est à droite, comme indiqué sur Figure 46. Sinon, des dommages pourraient en résulter.

  1. Slide the PSU into the system chassis until it stops.

  2. If necessary, push the release lever to the right and gently push the PSU in until it is fully seated and the release lever latches.

  3. Connect the power cord, and perform the steps in To fasten the power-cord retention strap.
